INFRASTRUCTURE

ROAD NETWORK & PEDESTRIAN CIRCULATION

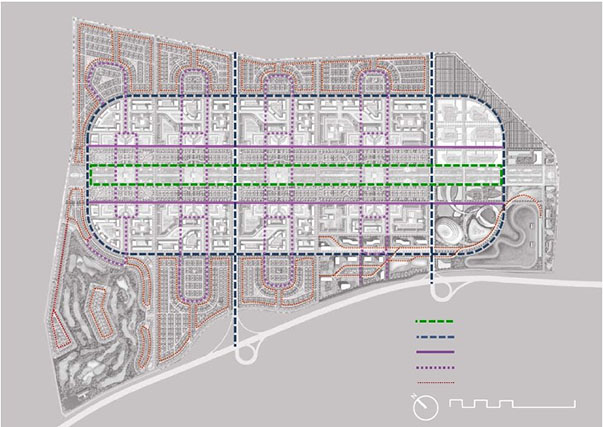

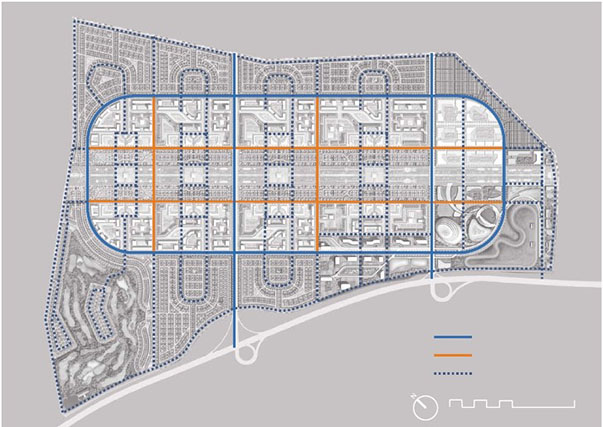

Road Network Two 30M wide entry roads link the adjoining highway, Salbuk Road, to the site. From the entry roads, 30m wide circulating road, and 20M and 12M wide access roads spread out across the entire site and complete the grid pattern of the site’s road network. This hierarchical network helps enter the site (using the interchanges) and move around and find ways to various facilities in the city. Neighborhood roads and the site periphery circulation road extend out from this grid network to reach each residence and to CBD inner block facilities.

Pedestrian Circulation Horizontal lines of pedestrian circulation paralleled to the central green axis provide major patterns of residents’ walking and biking experiences. Secondary circulation runs with the wide shaded paths along the 30M roads. Another vertical lines run through the blocks of villas and apartments, constituting the residential pedestrian. Vertical loop greenways crossing the horizontal axes connect the city’s central areas with the neighborhoods and complete the entire pedestrian network. Various water features and green open spaces allow for climate- controlled healthy pedestrian circulation.

WATER SUPPLY, SEWAGE COLLECTION & WATER RECYCLING

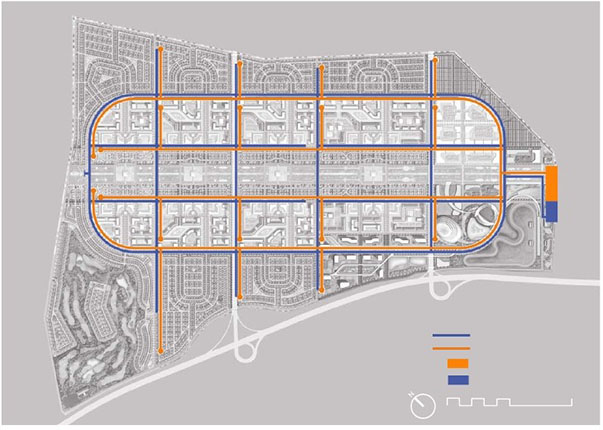

Water Supply and Sewage Collection Municipal water is stored in the on-site water tank and supplied to households and commercial and other public facilities. Pipelines are engineered with most efficient water pressure and based on calculated water demand (62,000 residents). The total water supply will be 37,046 t/day. Sewage pipelines run in parallel to the water supply network for predicted sewage volume of 29,600 t/day. The sewage collected through this sewage collection network is sent to the sewage treatment plant located at the southern end of the site in order to obtain recycled water.

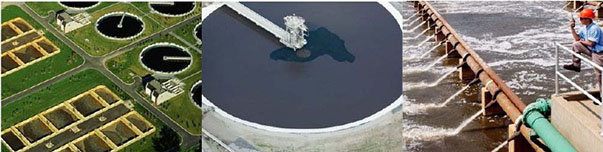

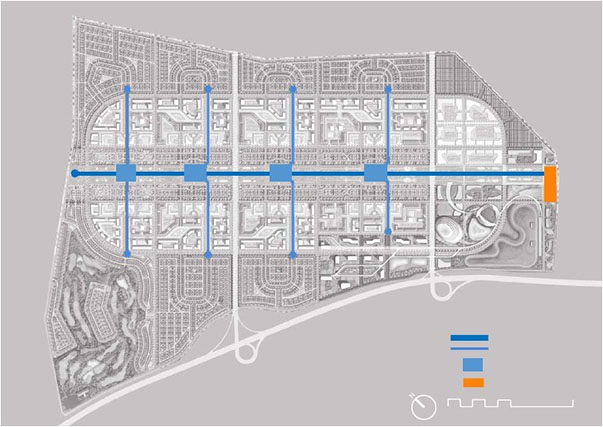

Water Recyclingn The sewage collected across the entire site (29,600 t/day) is sent to the sewage treatment plant to produce 23,709 t/day of treated water (80% of the collected sewage). This treated water and the supplementary underground water of 5,467 t/day make approximately 30,000 t/day of recycled water which runs through the central canals to be stored in the ponds working as water reservoirs. From the ponds, the recycled water is supplied site widely for various purposes (for irrigating landscaped areas and golf course, for maintaining the site’s ecological waterscapes, for evaporation refill, etc.).

UNDERGROUND UTILITY TUNNEL, ELECTRICITY & TELECOMMUNICATION

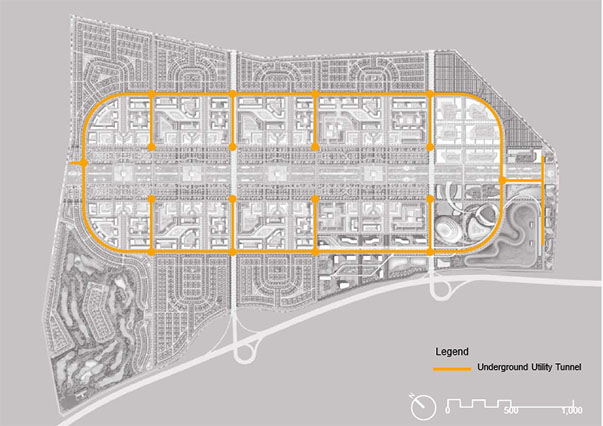

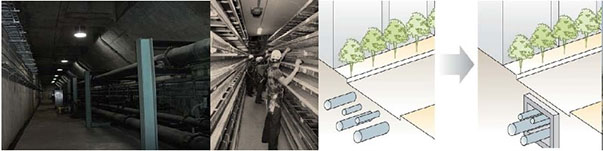

Underground Utility Tunnel MA total of 14,300 meters of underground utility tunnel is installed along the road network that runs across the entire site. The utility tunnel incorporates various infrastructure pipelines including electricity, telecommunication, water supply, black water piping, recycled water and waste collection. This grouped utility network will ensure easy installation and effective maintenance of the city infrastructure while these underground pipelines also provide surface use and civic aesthetic benefit. Two 240,000 KVA power substations are installed in the site to transform the electricity drawn from outside the site. Electricity power cables will be buried and maintained in the Underground Utility Tunnel. Telecommunication demand is 200, 000 lines. Service will be delivered through the underground utility tunnel.

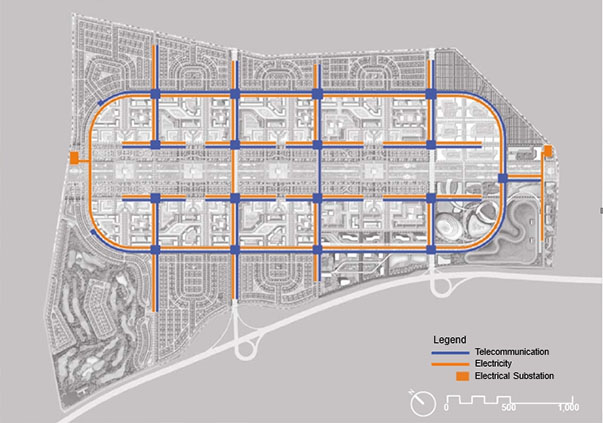

Electricity and Telecommunication Two 240,000 KVA power substations are installed in the site to transform the electricity drawn from outside the site. Electricity power cables will be buried and maintained in the Underground Utility Tunnel. Telecommunication demand is 200, 000 lines. Service will be delivered through the underground utility tunnel.

WASTE COLLECTION & GAS SUPPLY

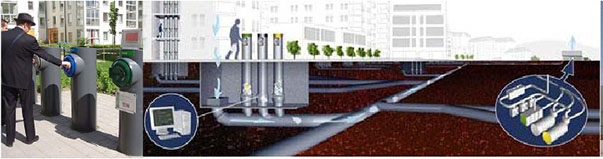

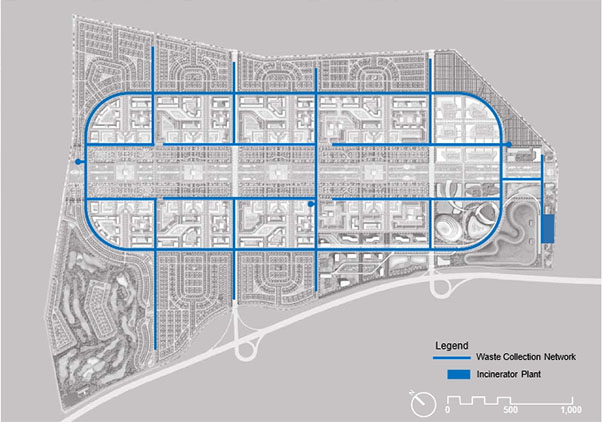

Waste Collection and Management All waste generated from households and commercial and other public facilities are delivered to neighborhood collectors and to the waste collection facilities via a network of 46,400m long vacuum tunnels. This pneumatic collection system utilizing pressed air will employ the most recent and efficient technology. The collected waste is sent to the on-site incinerator plant having the incinerating capacity of 200 t/day, and transformed to alternative energy resources.

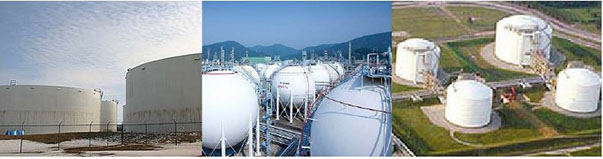

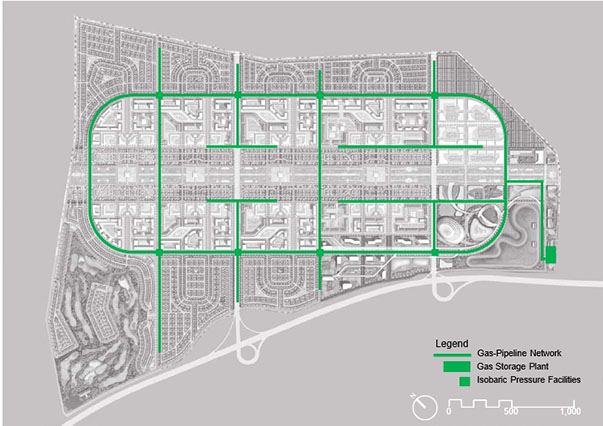

Gas Supply Municipal gas supply is stored in on-site gas storage plant of 600m3/hr supply capacity and supplied to end users through the gas pipelines network having a total length of 58,000m. Various safety and efficiency technologies are employed including isobaric pressure stabilizing facilities and gas leak prevention systems.

GREEN & OPEN SPACE

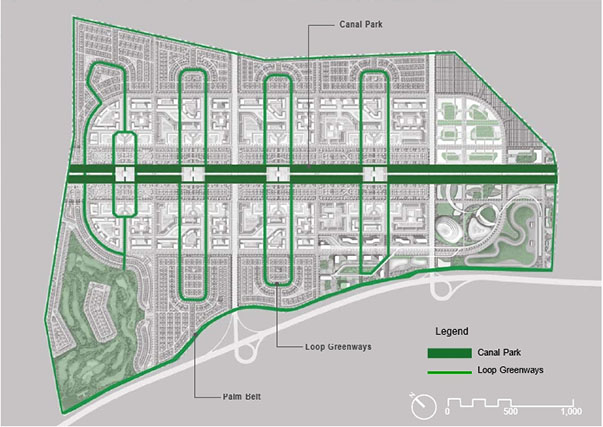

Public Green Structure Thick palm belts surround the entire site to provide green environments and noise control for communities and facilities. The palm belt along Salbuk Road is twice thicker. A large linear central green axis, Canal Park, penetrates across the site providing all residents with access to various ecological features, such as ponds, canals rest areas, leisure places and green pedestrians. Several loop greenways extend out from this central axis to complete the interconnected site wide green network and a connection to Golf Course.

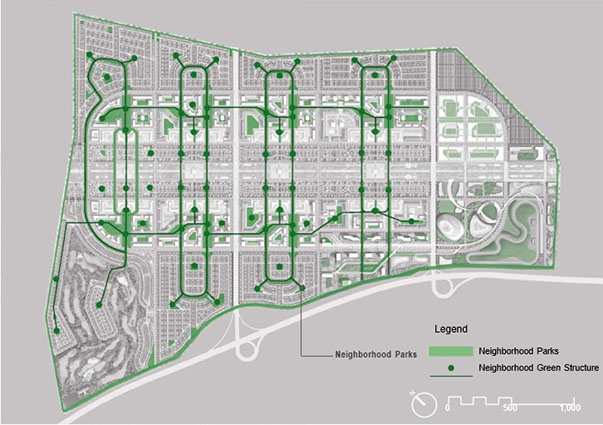

Neighborhood Green Structure Each neighborhood has a small ecological nook or a landscaped inner courtyard (apartments) at its central area, a combination of green space, water, plaza and rest area, giving an easy access from every house and encouraging residents’ daily use. Neighborhood centers including mosques, clinics, fitness centers and village offices are placed around these intimate parks. Each neighborhood park is planned to give proximity and linkage to the loop greenways and further to the central Canal Park to provide comfortable environments for rest and connected pedestrian.

WATER SPACE

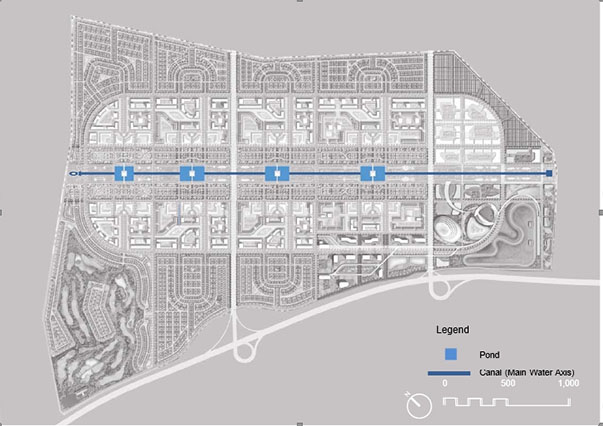

Pond and Canal The Aqua Green City concept of Riyadh North is realized in four ponds (surrounding the Main Mosque respectively), canals (flowing between the ponds), and various water features (fountains, water parks and rest areas), all planned within Canal Park. There is also a small water ecology in each neighborhood linked by the loop greenways to these central water features of the city. Considering the scarcity of water resources in the region, all these water features will be filled with recycled water produced within the site.

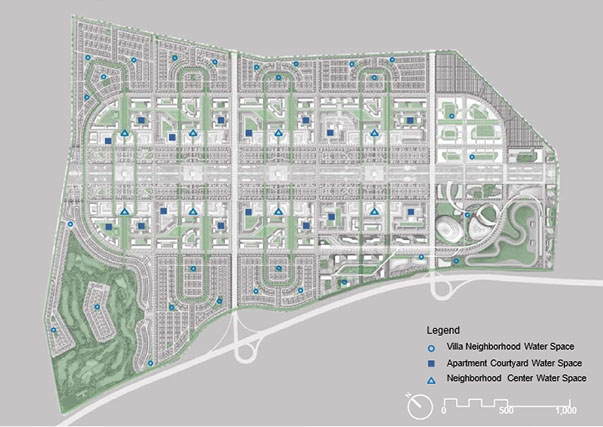

Neighborhood Water Space In each residential block of villas and within each courtyard of apartments is a small water space with ecological features. Utilizing recycled water, this small water ecology will provide climate-controlled open spaces and family resting areas at the neighborhood scale. In each neighborhood center will also be a water landscaped courtyard which encourages community gathering and climate-protected rest. These water spaces will be planned so that they are spatially linked with the exterior and interior of the community facilities (mosques, clinics, etc.) and combined with the city’s greenways and central parks.
